Drain pipe installation in Dubai
The pipe itself, laid right. Fall, bedding, joints and a test before it disappears.
Quick answer
What does drain pipe installation involve?
Drain pipe installation is laying the pipe that carries waste and soil water: selecting the right material and diameter, setting it to the correct fall, bedding it evenly, jointing it properly, and testing the run before it is covered. It is the pipe-laying part of the wider job covered on the drain installation page.
The pipe is the easy part. The fall is the job.
Laying a length of pipe is simple. Laying it so it works for decades is not, and the difference is almost entirely the gradient. A drain pipe carries solids as well as water, and solids are only carried at the right fall: too shallow and they settle and the line silts; too steep and the water runs off and leaves them behind. Both produce the same result, a line that blocks at the same point forever, and both are built in the moment the pipe is laid.
This is why drain pipe installation is not a job to hand to the cheapest trade with a shovel. A pipe laid to the wrong fall cannot be cleaned into working. It has to be dug up and laid again, which is why the back-fall we relay was almost always installed by someone who treated the gradient as an afterthought. The full picture of a drainage installation is on the drain installation page; this page is about getting the pipe itself right.
Material and diameter, matched to duty
The pipe has to suit what it carries and where it sits. uPVC is the common default for below-ground waste and soil drainage. HDPE, with its welded joints, is preferred where ground movement is expected. Diameter is set by the load: a basin waste and a soil line carrying a whole bathroom are not the same pipe. Getting this right on paper, before ordering, is far cheaper than discovering a line is undersized after it is buried. A supply material used for gravity drainage, or a thin-wall pipe where the ground moves, is a defect built in on day one.
How it is laid, and why testing comes before covering
Set out
Route and gradient are established before excavation, working from the connection point and the fall available across the run.

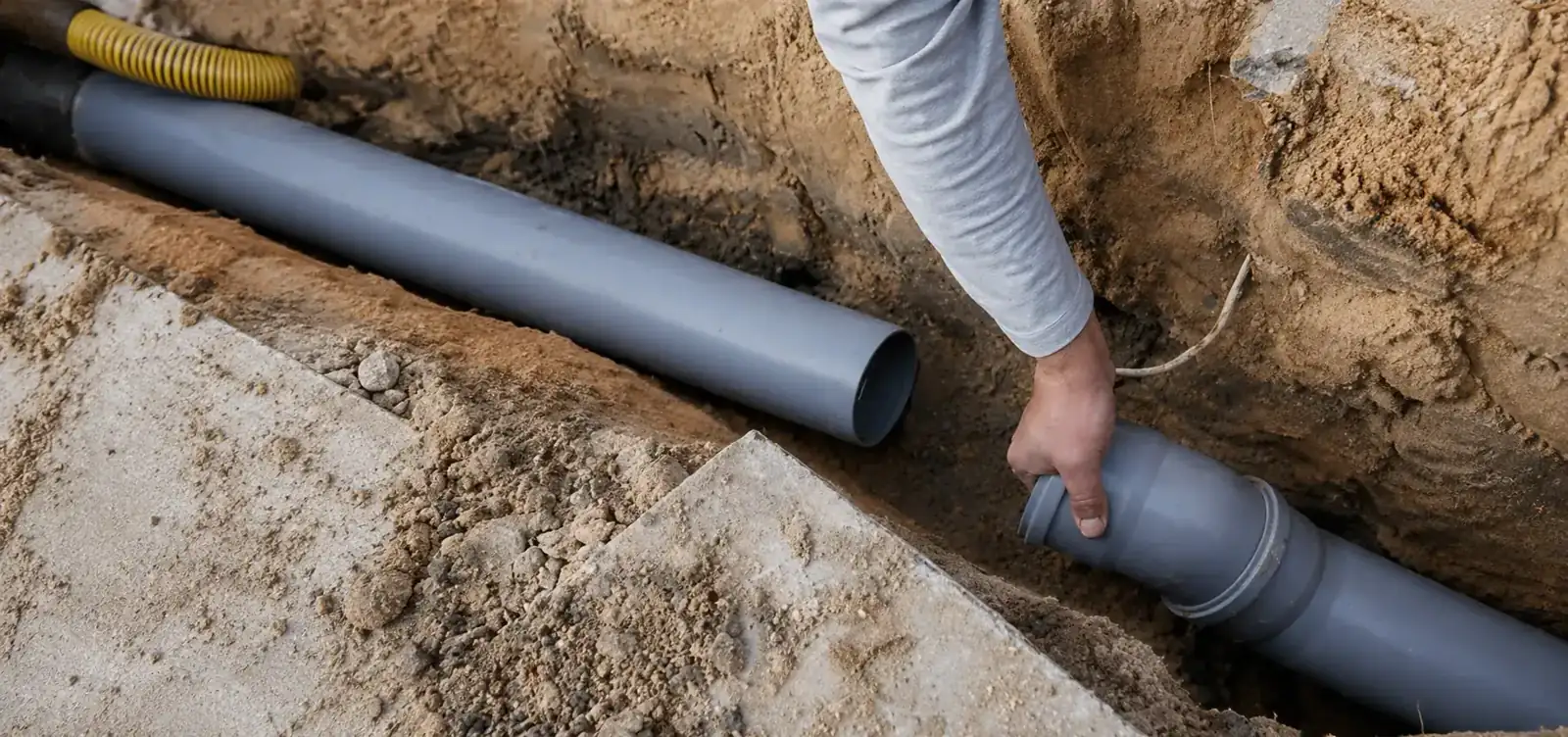

Bed
The trench is dug to depth and the pipe bedded on a prepared granular base, supported evenly so it does not crack on a hard point.
Joint
Pipes and fittings are jointed to the manufacturer's method, because a poor joint is a future displaced joint and a future recurring blockage.
Access
Rodding eyes and inspection points are set at changes of direction, so the finished line can be cleared and surveyed without digging it up again.
Test, then cover
The run is CCTV surveyed and flow tested before backfilling. Once covered, the fall and joints cannot be checked without excavation, so this is the only moment the work can be verified.
The pre-cover test is the one step never to skip, for the reasons set out in drain installation cost factors.
Frequently asked questions
What is the correct fall for a drain pipe?
A drain pipe needs a gradient steep enough to carry solids but not so steep that water outruns them, and the right figure varies with diameter, smaller pipes needing a little more fall than larger ones. The principle matters more than any single number: the fall must stay within range along the whole run, because a line that averages the right fall but flattens in the middle will still silt and block at the flat spot.
What pipe is used for drain installation in Dubai?
uPVC is the common default for below-ground waste and soil drainage, with HDPE preferred where ground movement is a factor because its welded joints tolerate flexing. The right choice depends on the load, the depth and the setting, and it is worth settling before ordering. PPR, which is sometimes confused with drainage pipe, is a pressurised supply material and is not used for gravity drainage.
Why must new pipe be tested before it is covered?
Because once a drain pipe is backfilled, its fall and joints cannot be inspected without digging it up again. The CCTV survey and flow test before covering is the only chance to confirm the pipe was laid correctly, and it costs a fraction of discovering a fault after the surface has been reinstated. Skipping it is how a length of back-fall ends up buried under a driveway that then has to come up when the line silts.
Can you replace a single section of drain pipe?
Yes. A failed or collapsed section can be excavated and replaced, or in many cases repaired from inside by relining without digging. Which is appropriate depends on the defect and is established by a CCTV survey. Where excavation is needed, a located survey means the dig happens once, in the right place, rather than as exploratory trenching. See drain repair and sewer pipe relining for the trenchless options.
Do you offer drain pipe installation near me?
For a service like this, near me really means how quickly we can get to you. We provide drain pipe installation across Dubai, working from our base in Al Quoz Industrial Third, so a near me search is answered less by a branch on your street and more by how quickly we can reach you. That depends on where you are in the city, the time of day and access, so rather than claim to be the nearest, we ask where you are and give you a realistic time to attend. Tell us your location and what you need, and we will be straight about when we can be there.
